商品の詳細:
お支払配送条件:
|
| 名前: | 1トン 2トン 3トン 5トン 10トン 電線ロープホイスト CD MD | 容量: | 1t-100t |
|---|---|---|---|
| リフトの高さ: | 標準 6/9/12/18m またはリクエストに応じて | リフト速度: | 8メートル/分; 0.8/8m/分 |
| 旅行速度: | 20m/min | 制御電圧: | 24V/36V/48V |
| 保証: | 1年 |
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.

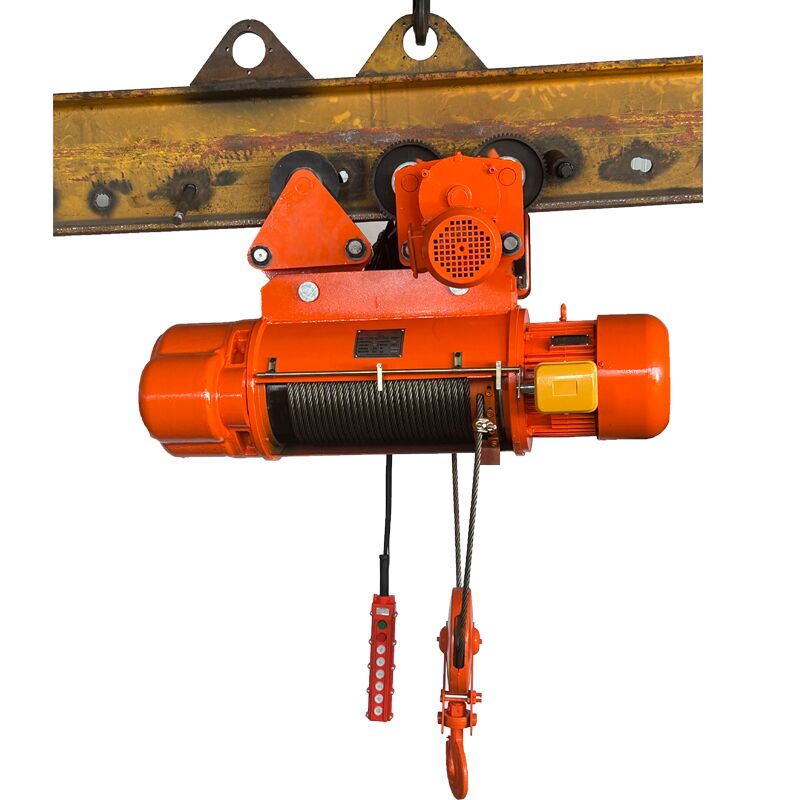

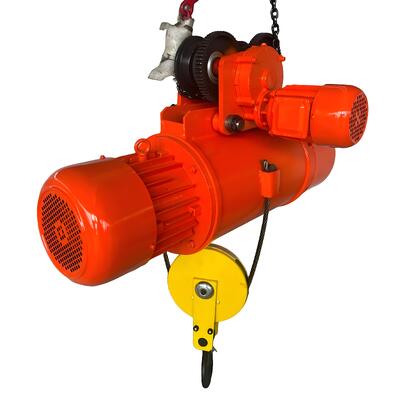

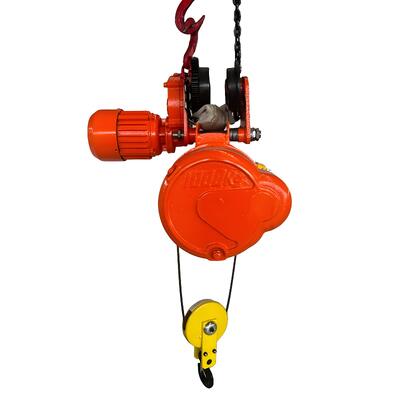

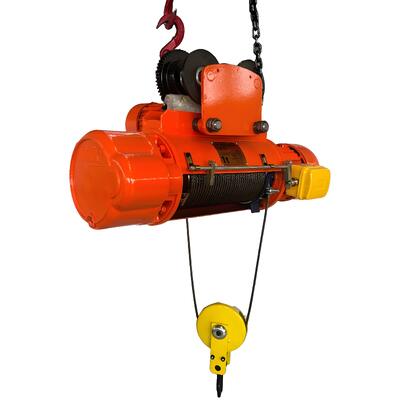

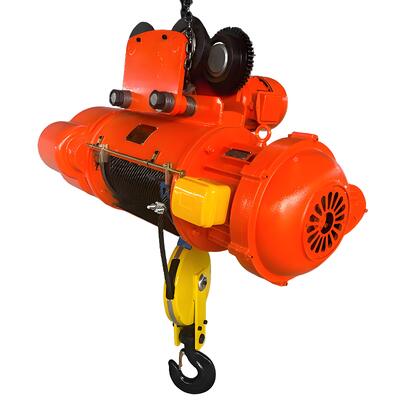

The electric wire rope hoist CD1 and MD1 have features of compact, light, small-sized shape and smooth operation. It can be uesd not only on the overhead reils, but also be uesd in conjunction with many types of electric or manual cranes such as the single-grider crane, the double-grider crane, the cantilever crane and the gantry crane. The eletric hoist model MD1 with double lifting speeds should be used in case where the hiost model CD1 can not meet the requirements for fine abjustments during precision operations
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | (H)Lifting Height | ||
| Power(kw) | R.P.M(r/min) | Power Supply | ||||||
| CD1-0.25 | 0.25 | 8 | 20 | 6*19 | 3.6 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase |
| CD1-0.5 | 0.5 | 8 | 20 | 6*37+1 | 4.8 | 0.8 | 1380 | |
| CD1-1 | 1 | 8 | 20 | 6*37+1 | 7.4 | 1.5 | 1380 | |
| CD1-2 | 2 | 8 | 20 | 6*37+1 | 11 | 3 | 1380 | |
| CD1-3 | 3 | 8 | 20 | 6*37+1 | 13 | 4.5 | 1380 | |
| CD1-5 | 5 | 8 | 20 | 6*37+1 | 15 | 7.5 | 1380 | |
| CD1-10 | 10 | 7 | 20 | 6*37+1 | 15 | 13 | 1380 | |
| CD1-16 | 16 | 3.5 | 20 | 6*37+1 | 15 | 13 | 1380 | |
| CD1-20 | 20 | 3.5 | 20 | 6*37+1 | 20 | 13 | 1380 | |
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | (H)Lifting Height | ||
| Power(kw) | R.P.M(r/min) | Power Supply | ||||||
| MD1-0.25 | 0.25 | 8/0.8 | 20 | 6*19 | 3.6 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase |
| MD1-0.5 | 0.5 | 8/0.8 | 20 | 6*37+1 | 4.8 | 0.2/0.8 | 1380 | |
| MD1-1 | 1 | 8/0.8 | 20 | 6*37+1 | 7.4 | 0.2/1.5 | 1380 | |
| MD1-2 | 2 | 8/0.8 | 20 | 6*37+1 | 11 | 0.4/3 | 1380 | |
| MD1-3 | 3 | 8/0.8 | 20 | 6*37+1 | 13 | 0.4/4.5 | 1380 | |
| MD1-5 | 5 | 8/0.8 | 20 | 6*37+1 | 15 | 0.8/7.5 | 1380 | |
| MD1-10 | 10 | 7/0.7 | 20 | 6*37+1 | 15 | 1.5/13 | 1380 | |
| MD1-16 | 16 | 3.5/0.35 | 20 | 6*37+1 | 15 | 1.5/13 | 1380 | |
| MD1-20 | 20 | 3.5/0.35 | 20 | 6*37+1 | 20 | 1.5/13 | 1380 | |
